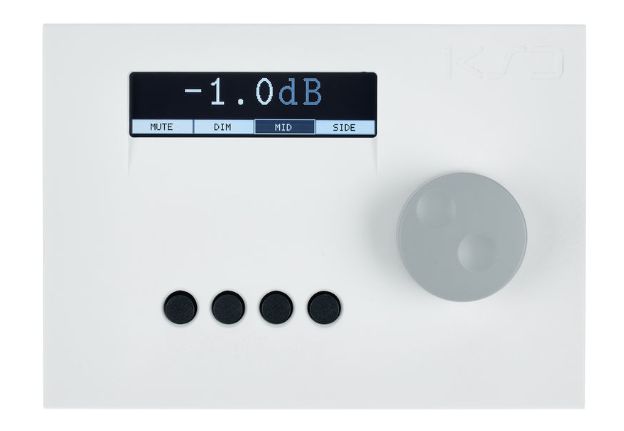

KSD-RC – Remote Control

The KSD-RC is the appropriate hardware remote controller for accessing the internal parameters of all KSD speakers.

1. use as setup adjustment:
With the KSD-RC, individual parameters such as filters, delay, gain etc. can be conveniently adjusted to suit the acoustic ambience and your own listening habits from the monitoring position.

2. use as a monitor controller:
With the volume knob, the monitoring level of all connected speakers can be conveniently adjusted to the exact dB, while the MUTE and DIM buttons with direct access are practical tools in everyday studio use. This makes it possible to connect the speakers directly to the digital master output of the workstation or other full-scale sources. On the A-Line, CX-System and LINEMASTER models, the KSD-RC allows separate monitoring of the mid or side signals (M/S monitoring function with digital connection)

Parameters:

Volume control: 0…-75dB (monitoring volume)
Gain: -31dB …0dB (offset level)
EQ1..6-Freq: selects the cut-off frequency of the filter
EQ1..6-Gain: – 12dB … + 12dB
EQ1..6-Q: 0.1 … 20.0
Lowshelving: – 6dB … + 6dB
Highshelving: – 6dB … + 6dB
Delay: 0.0 … 3.1m

Keys: MUTE DIM MID SIDE
Connect: RJ-45
dimensions: 18.0 x 14.0 x 6.0 cm
weigth: 600gr
