B500-Reference

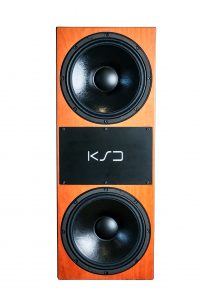

B500-Reference Subwoofer
The B500-Subextension is a compact mono subwoofer designed to enhance the bass performance of the A-Line series and the C-100-Reference monitor.
The B500-Subextension expands the KSD monitors by adding depth to the lowest octave. The subwoofer features two high-performance eight-inch drivers powered by 500W PWM amplifiers, all controlled by the DSP in the Mainmonitors. Together with the main tops, the B500 creates a large monitoring system with the best adaption to the control room acoustics and sufficient performance for a really great experience.
The acoustic advantages of the B500 subextension
- Universally applicable with KSD A-Line and C100
- Subwoofer in a flow-optimized steel case
- System-FIRTEC-processor for perfect crossover , equalization and delay of the complet setup
- High SPL output from the bottom octave (from 24 Hz)
- Volume and filter adjustable in combination with top monitor

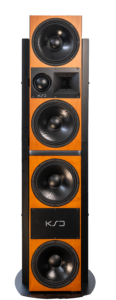

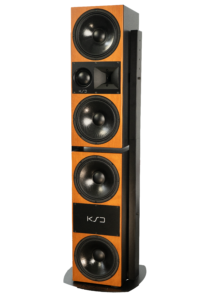

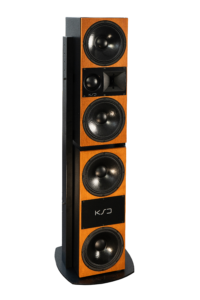

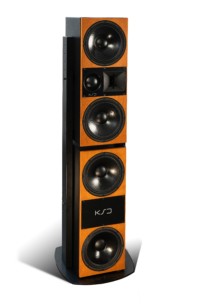

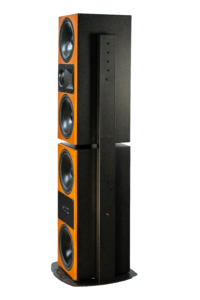

Mainmaster-Stack with A500 + B500
Technical data
- Double 10″ bass extension for A200mk2, A500, C100
- Signal processing in FPGA in 24 bit ADC/DAC FIRTEC(™) patent:19823110
- X-Over at 80 Hz bessel filtered – forms a main monitor unit in combination with Top
- Processing: Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain (via KSD-RC)
- 2 pieces of 10″ high-performance woofer
- Power: 1000W (RMS)
- SPL (max) > 132dB Peak/pair (A500)
- Frequency response 24 – 22000 Hz (including main)
- Weight 30kg, incl. packaging 32kg
- Dimensions 480 x 240 x 310 mm
- Remote Control via main by KSD-RC (optional): 6 user EQs, volume, delay, gain.
To ensure a controlled and powerful reproduction of deep bass frequencies, the B500-Subextension is controlled via the XLR sub-output of the main monitor. This results in stress-free, detailed bass reproduction without any distortion or excessive pumping. The digital signal processor linearizes the frequency response, while internal filters allow for precise tuning to the room and application. Additionally, the adjustable delay compensates for any spatial offset between the B500-Reference and the satellites.
The B500-Reference’s specially designed high-performance drivers, housed in an optimized steel enclosure, produce an extremely controlled and „dry“ bass signal, eliminating unwanted ventilation noises.
