C120 Ultimate point source mainmonitor for all applications

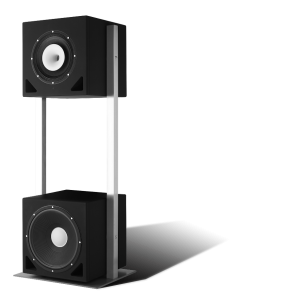

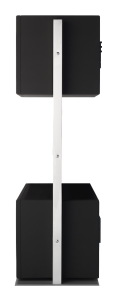

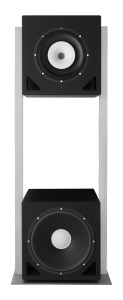

Coaxial master: C120-Coax full-range monitor & bass extension CB150

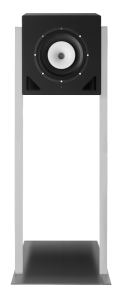

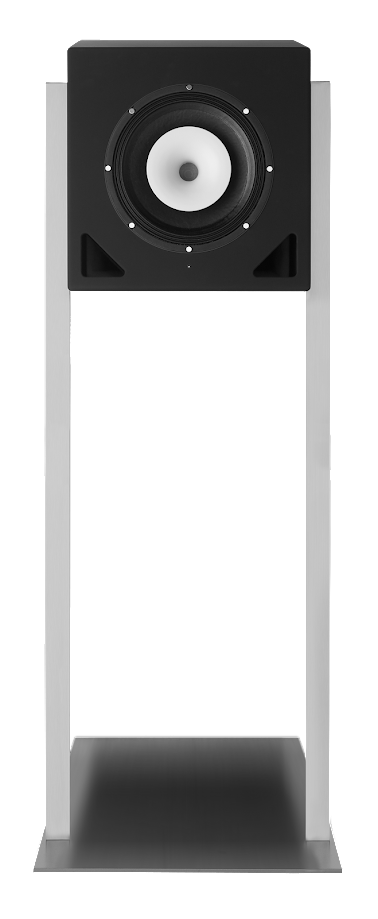

The Coaxmaster system is a modular system of various coordinated components. The main areas of application are recording studios for classical to rock recordings, video and film studios. But mastering studios also rely on the CX system as an unerring reference monitor. The scalable size allows adaptation to the existing control room, either the C120-Coax as a full-range coax monitor (without sub-extension), or the complete 15″ bass extension CB150 as a coax master in the included stand. The monitor controller KSD-RC allows perfect adaptation to the room acoustics and installation.
The compact housing shape of the cube with an edge length of 45 cm even allows for mobile use. Many successful producers, mastering studios or radio and television such as SWR or ZDF work with the C-120 or the Coaxmaster system.
Application: Full-range coaxial monitor system for all applications
Bass extension: CB150
The acoustic advantages of the CX system:
Phase-locked coupling of the emitted sound to the input signal
Spot beam source:
Compact housing dimensions with full bandwidth from 25Hz and high usable SPL

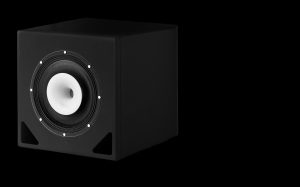

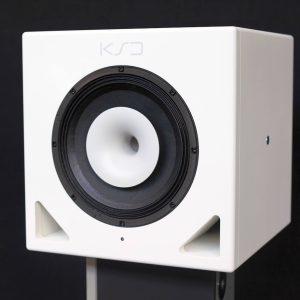

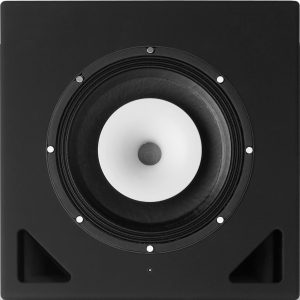

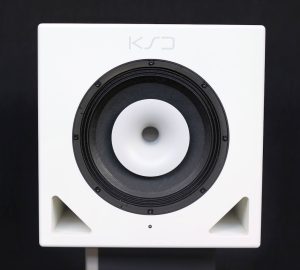

Technical data KSD C120
- 2-way coax point sound source,

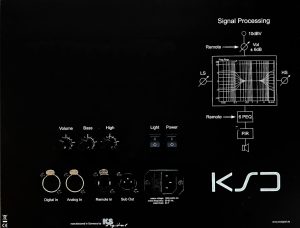

- Signal processing:
- in FPGA in 24 Bit ADC/DAC FIRTEC(™) patent:19823110
- FIR-Xover, Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain
- 1” neodymium high horn driver
- 12″ high-performance bass mid-chassis
- Power amplifiers 250 W / 250 W
- SPL (max) >140 dB peak/pair
- Frequency response 25 – 22000 Hz
- Weight 32 kg including packaging 34 kg
- Dimensions 450 x 450 x 480 mm
- Accessories: CX stand stainless steel (optional)
- Remote Control (optional) KSD-RC controls 6 user EQs, volume, delay etc.

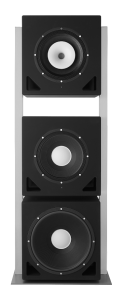

Bass Extensions – CB150
The Sustemsub CB150 expands the KSD C120 in all areas of performance. Greater final volume and even more confident bass reproduction with the included stand form the Coaxmaster monitor for all applications.
The system housing is equipped with a 15-inch long-throw bass chassis and with 800 watts from the PWM system amp, the bass is stimulated at a total of 4 points in the speaker front and together form a planar wave front. Simply by arranging the basses in the room, there is a significantly less critical spatial stimulation even in acoustically more critical rooms.
Technical data:
construction: subwoofer bass
chassis: 15“ high performance driver (CB150)
process: digitally controlled by C-120
amplifier: 1000W peak
frequency range: 22 – 80Hz (+/3 dB)
dimensions: 45.0 x 45.0 x 48.0 cm
weight: 32kg
