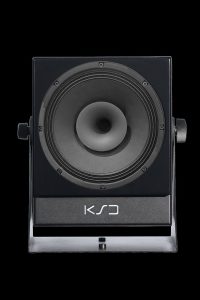

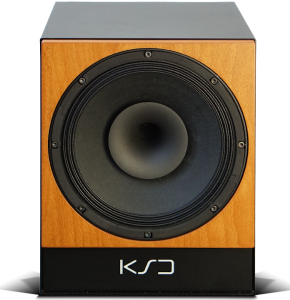

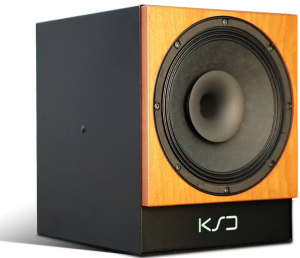

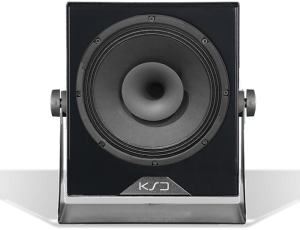

C100 Point source mainmonitor for all applications
The C100-Reference is a high-performance coaxial speaker designed for a wide range of professional applications, including, mixing, recording, broadcasting, and immersive use.This versatile monitor is specifically engineered for both stereo and immersive multi-channel operation. Its unique coaxial structure, combined with a conical 70° horn, ensures optimal radiation behavior and creates the perfect sweet spot in any studio environment. Even in acoustically challenging production spaces, the C100-Reference guarantees maximum control over your sound.
Our proprietary FIRTEC™ frequency and phase linearization technology ensures an optimal impulse response, allowing for precise sound source mapping in virtual space.
With a power amplifier output of over 200W (peak) per channel, the C100-Reference provides ample power reserves for any studio application.
The high efficiency of the bass chassis and compression drivers minimizes distortion, even at higher listening volumes. Additionally, the installed PWM power amplifiers operate with exceptional efficiency, generating minimal waste heat. This means that the C100-Reference performs optimally in any listening station, including on-wall installations.
The KSD-RC remote connection offers convenient access to phase-compensated, parametric EQs, allowing for precise room measurements without the need for additional hardware. In a multi-channel setup, the KSD-RC also enables volume control for the entire system.
Bass extension:
Parameter control and remote control:
Technical data
- 2-way coaxial point sound source,

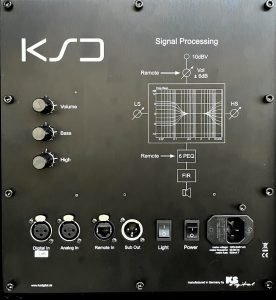

- Signal processing:
- in FPGA in 24 Bit ADC/DAC FIRTEC™ (patent:19823110)
- FIR-Xover, Limiter, 6User-EQ, High-&Lowshelving, Delay, Gain
- Coaxial chassis with 1″ compression driver on 70° horn and 10″ high-performance woofer/midrange driver
- Power amplifiers 250W / 250 W
- SPL (max) 118 dB Peak/pair
- Frequency response 35 – 22000 Hz
- Weight 15kg
- Dimensions 285 x 350 x 350 mm

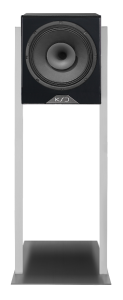

- Accessories table stand / wall mount optional
- Remote Control (optional) KSD-RC controls 6 user EQs, volume, delay, etc.
